Fire inside the Electric Panel
Fire inside the Electric Panel
Fire inside the Electric Panel
SFEX Solution : SFEX Line / Pad
- The ignition point of a fire inside the electric panel is mostly the part where the terminal block is fastened, so in order for initial fire extinguishing, the solution should be closely installed to the part where the terminal block is fastened.
- In the case of a small electric panel, a complete initial fire extinguishing is expected for fires occurring inside the electric panel by attaching the SFEX Pad to the top surface of the electric panel.

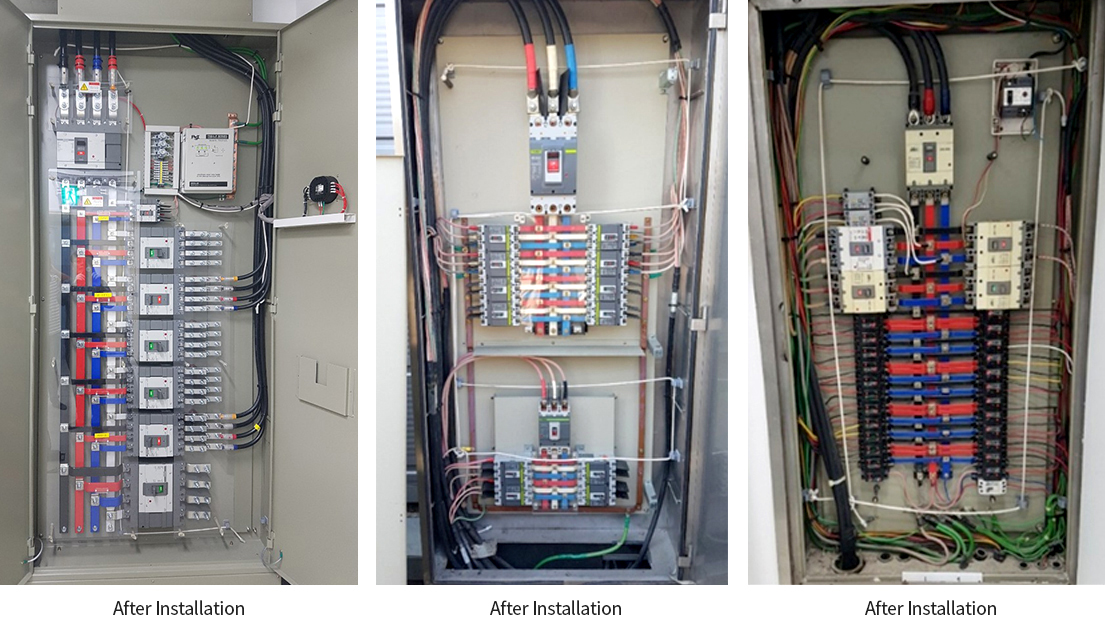

Example of Installation 1 : SFEX Line - If ducts exist
- Installing the SFEX Line horizontally or vertically in the ducts closest to the expected ignition points
- It can be installed without damaging the panel
Example of Installation 2 : SFEX Line - If ducts do not exist
- Installing the SFEX Line horizontally or vertically, close to the expected ignition points of the Electric panel
Example of Installation 3 : SFEX Pad - Small Electric Panel
- Simply attach it to the top inside the Electric panel.
