Fire inside the Electric Panel
Fire inside the Electric Panel
Electric Panel Fire

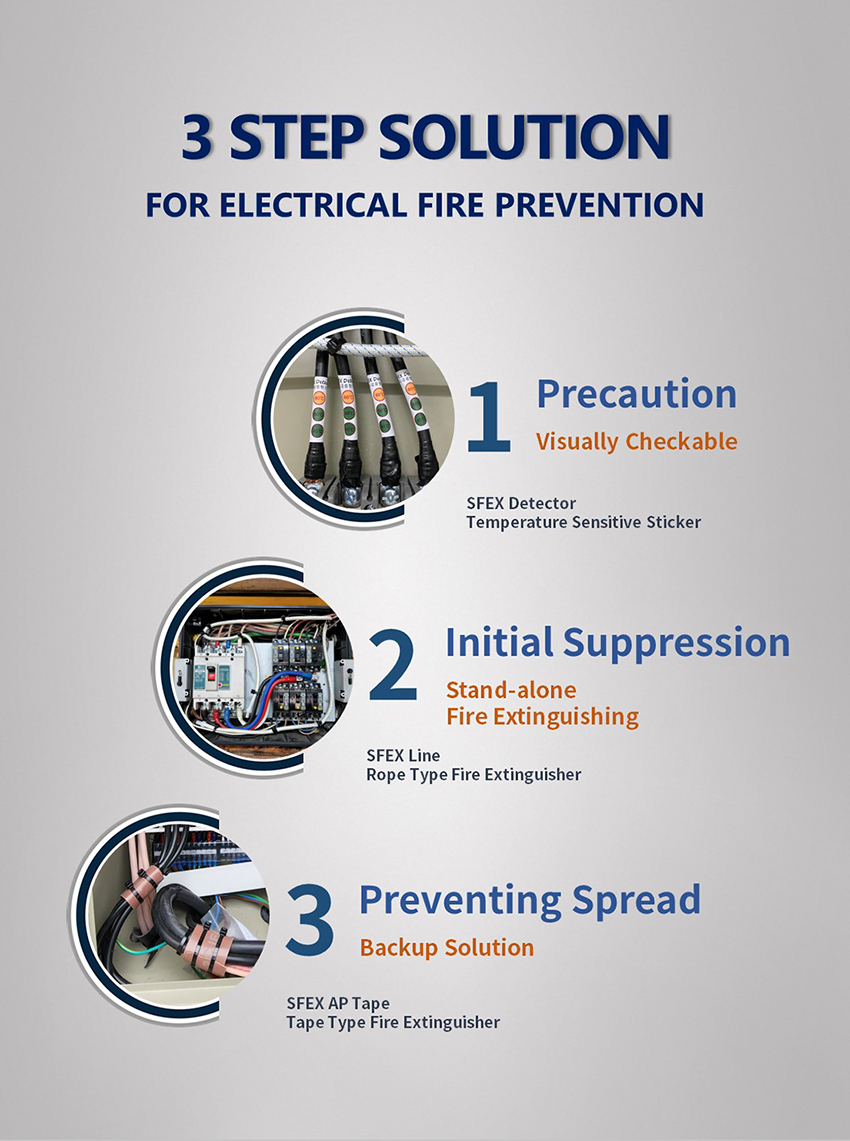

SFEX Solution: SFEX Line / SFEX Pad
- Since most of the terminal blocks inside the electric panel are fire ignition points, the solution must be installed close to this area.
- SFEX Pad is designed to be attached to the top of the panel for perfect initial fire suppression.
SFEX Solution: SFEX AP Tape
- A poor connection of the terminal block inside an electric panel causes heating and fire. even if the fire is initially suppressed, there is a high risk of re-ignition.
- If the door of the electric panel is open, the fire suppression ability may be weakened and the fire may not be extinguished.
- Therefore, a backup solution is essential to prevent fires from spreading through the input/output cables of the electric panel or from the outside cables of the electric panel into the inside.
How it Works
- 1Wrap the input/output cables with SFEX AP Tape 1.5 to 2 times.
- 2It prevents the spread with its fire extinguishing and fire retardancy in the event of a fire.
- 3It prevents the spread of the fire to the Cable Pit or other areas outside the electric panel.

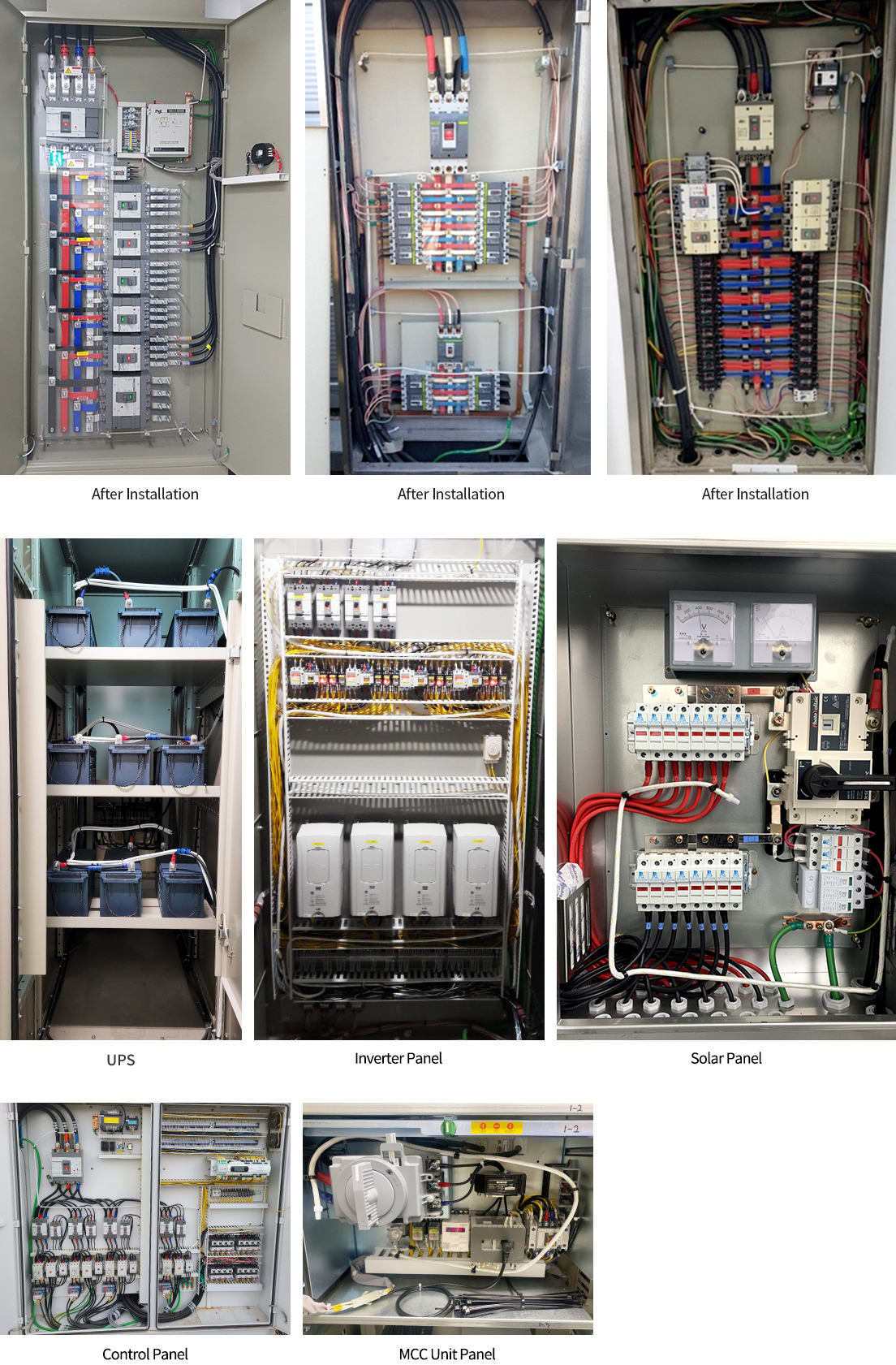

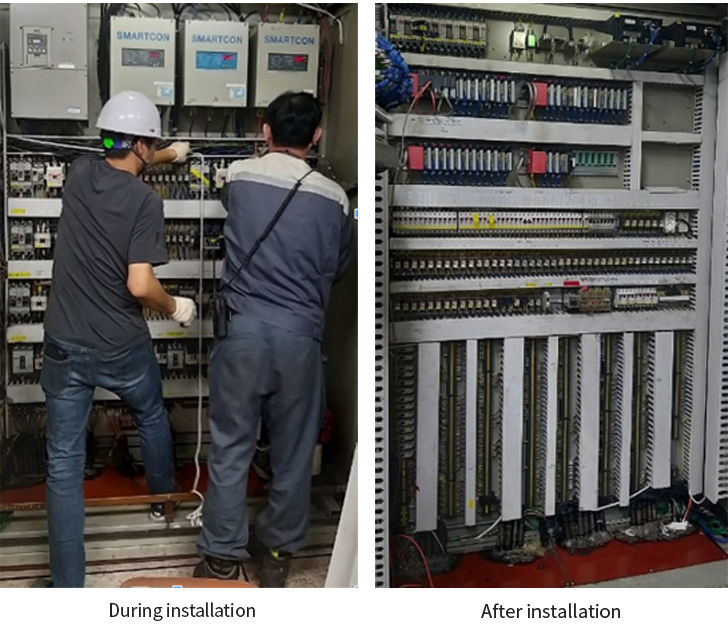

Example 1 : SFEX Line - For Ducted Areas :
- Install SFEX Line horizontally or vertically inside the duct closest to the anticipated ignition point.
- No need bracket, no damage to the electric panel for installation.
Example 2 : SFEX Line - For Areas Without Ducts:
- Install SFEX Line horizontally or vertically inside the cable closest to the anticipated ignition point.
Example 3 : SFEX Pad - For Small Electric Panels:
- Simply attach SFEX Pad to the top inside of the electric panel.
Example 4 : SFEX Pad - 소형 전기 판넬
- 전기 판넬 내부 상단에 간편하게 부착
